Three Lugs Industrial Air Filter Cartridge Galvanized Steel Inner Mesh

  • 1
  • 2
  • 3

Brand Name : DAITTO

Model Number : Industry Air Filter

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 25 working days

Packaging Details : standard export package

Material(Standard) : Cellulose/Polyester/Synthetic

Finishing Treatments : -coating,waterproofing,oilproofing,flame-retarding

Size : OEM

Package : standard export package

Sample : free

Application : Flour plant, Chemical factory, Wheels manufacturing and so on

Contact Now

3 Lugs Filter Cartridge

Model OD (mm) H(mm) ID(mm) Pitch(mm) Top flange
TN10551110F3 142 300 80 180 3
TN10552310F3 142 600 80 180 3
TN10553910F3 142 1000 80 180 3
TN10554710F3 142 1200 80 180 3
TN10612310F3 156 600 85 207 3
TN10613910F3 156 1000 85 207 3
TN10614710F3 156 1200 85 207 3
TN10852310F4 218 600 144 267 4
TN10853910F4 218 1000 144 267 4
TN10854710F4 218 1200 144 267 4
TN10852310F3 218 600 142 267 3
TN10853910F3 218 1000 142 267 3
TN10854710F3 218 1200 142 267 3
TN11272310F3 324 600 213 397 3
TN11272510F3 324 660 213 397 3
TN11273910F3 324 1000 213 397 3
TN11274710F3 324 1200 213 397 3


Three Lugs Industrial Air Filter Cartridge Galvanized Steel Inner Mesh

Detailed informations(Products):
1. Feature: Filter cartridges with lugs can be installed from either the clean side or the dirty side.They are specially suitable for compact dust filter collectors.
2. Wide application: With plenty of filter media selection of high quality and many finishing treatments available, we can always provide proper filter cartridges for all kinds of operating environments.

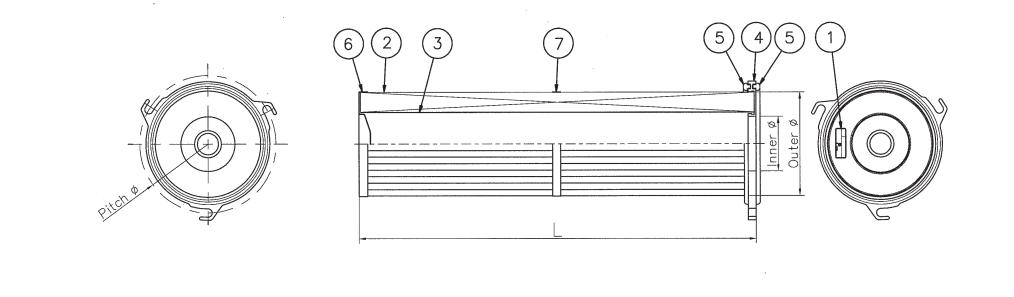

Structure:

Item Material(Standard) Material(Alternative)
Filter Media Cellulose/Synthetic fiber/ All kinds of H&V air filtration`s filter
Nanofiber/Polyester fiber media selection
Top cap/ Galvanized steel Stainless steel,Color-coated steel,
Bottom cap recyclable plastic ABS
(Open/Closed)
Gasket EPDM Urethane/Silicone
Inner Mesh Galvanized steel Stainless Steel,Color-coated steel,
Recyclable PP
Outside Straps/ Optional Glued or ultrasonic welded straps/
Outer Mesh Galvanized steel/Stainless Steel
Finishing Treatment -coating,waterproofing,oilproofing,flame-retarding
treatment, antistatic coating,etc


Application:
Widely used in sandblasting, welding fume, powder coating, and other kinds of
dust collection applications.

Also, we warmly welcome:
-- End users or agents to find replacements here;
-- Dust collector manufacturers to do customization.

Products Pictures:

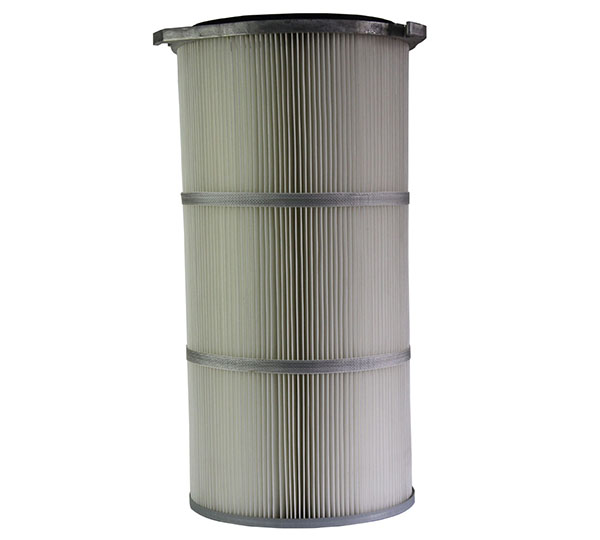

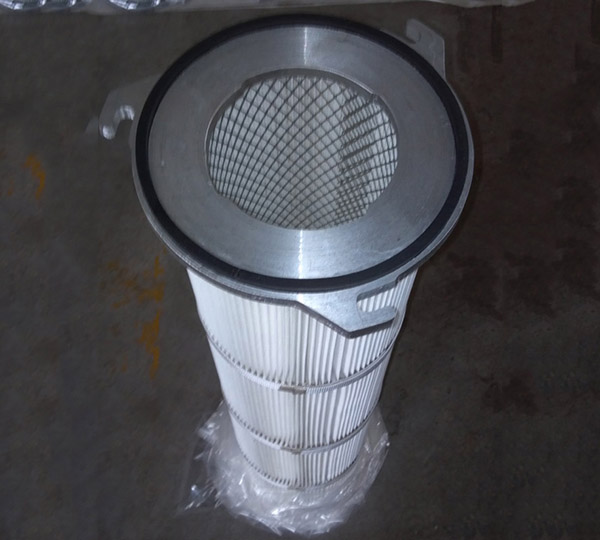

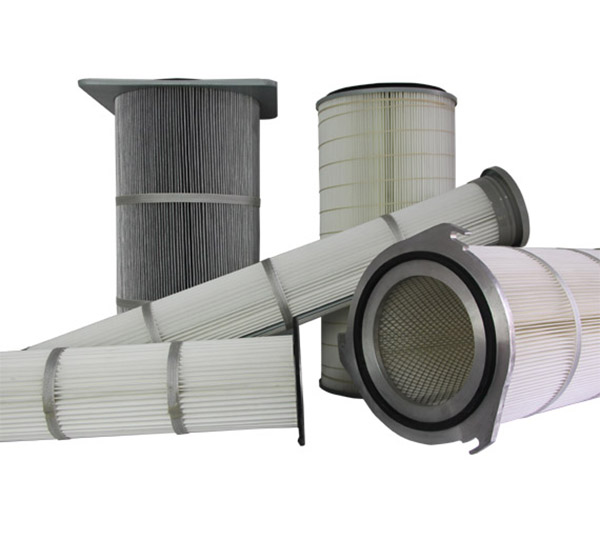

  • Three Lugs Industrial Air Filter Cartridge Galvanized Steel Inner Mesh
  • Three Lugs Industrial Air Filter Cartridge Galvanized Steel Inner Mesh
  • Three Lugs Industrial Air Filter Cartridge Galvanized Steel Inner Mesh
